Applications:

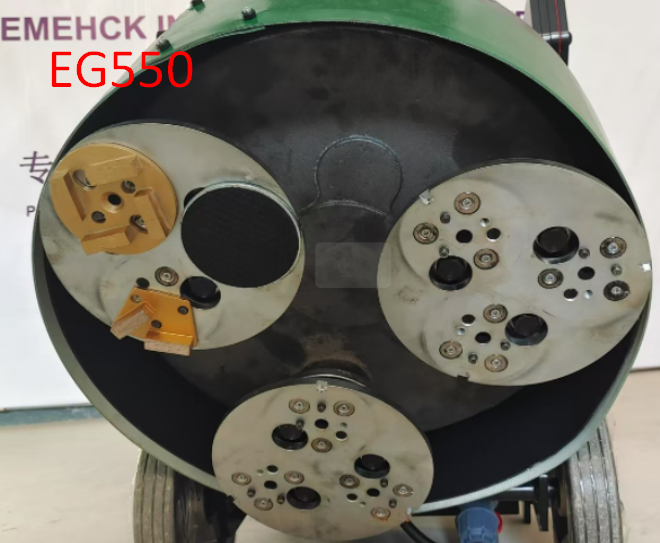

♦Planetary counter rotation system for excellent grinding and polishing surfaces.
♦Completely gear driven system for a superior duration and reliability
without belt transmission ensuring long life.
♦Rotating speed can be changed with a frequency converter, FWD&REV adjustable
♦Innovative quick shift polishing tools with magnetic disk and velcro to save the time.
♦Pretreating and leveling concrete surfaces for epoxy coatings.
♦Wet and dry operation with intergraded water deliver system and can be
connected with vacuum cleaner.
♦Grinding and Polishing for concrete, marble, granite, terrazzo etc
♦Removing painting, epoxy, urethane, glues, polyurethane and mastics coatings
♦Comfortable operating with 180 degree forward or backward adjustable handle .
♦The motor can be separated from the main body for convenient transportation.
♦Can work in the dark area with High-lighting LED light
Specification:

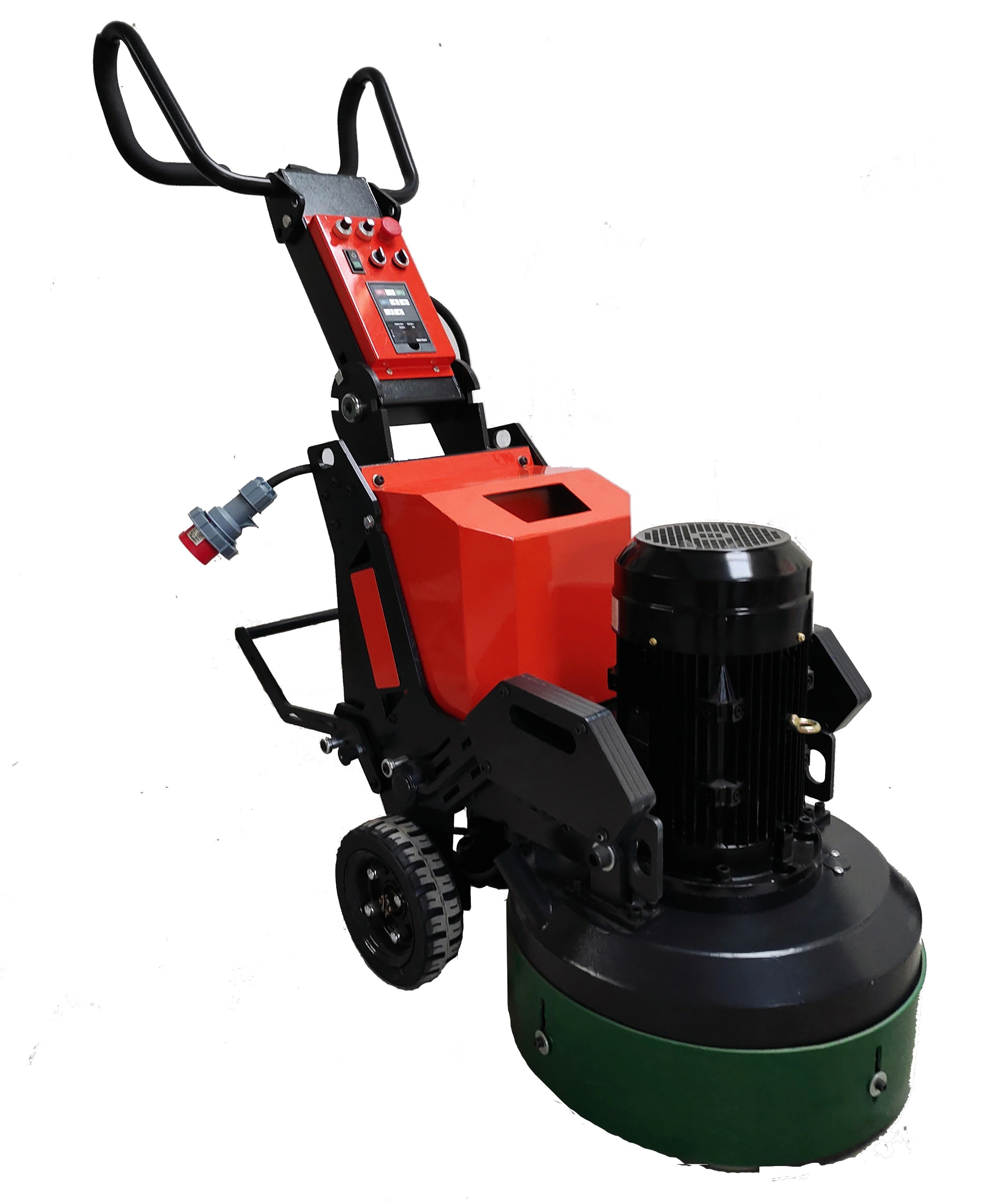

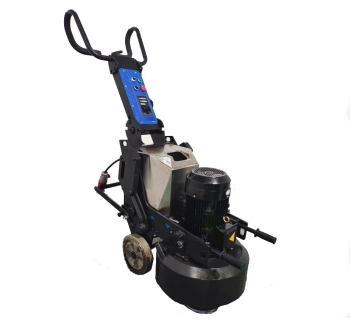

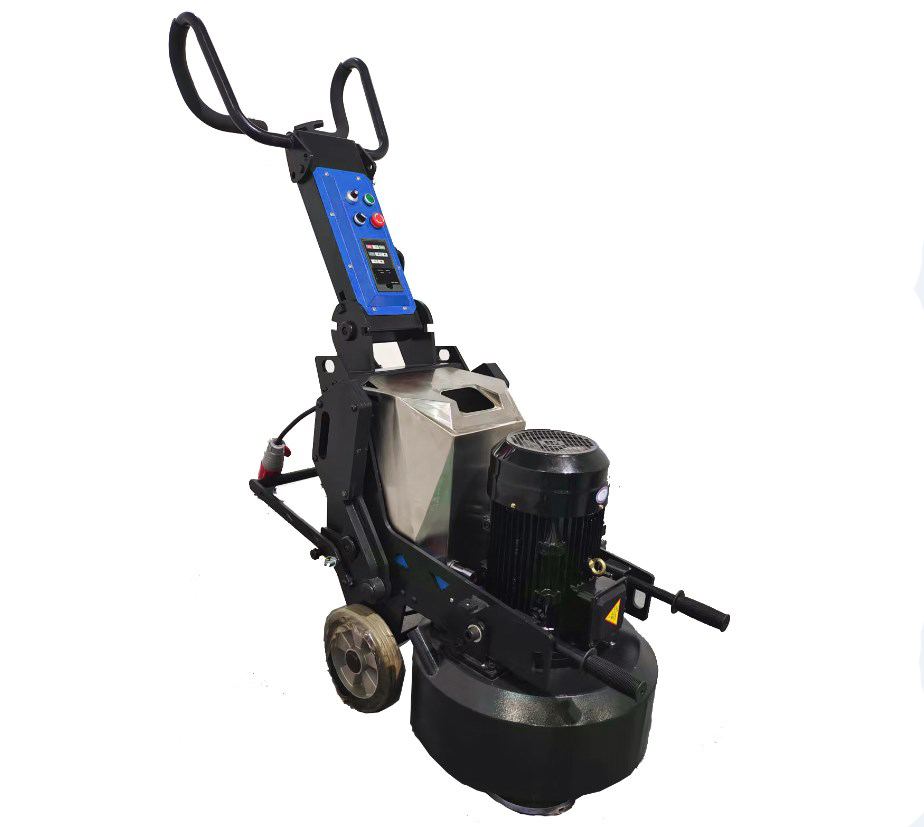

Model | EG550 self propelled |
Working Area | 550mm |
Voltage | 220-240/380-460V three phases |
Motor Power | 10hp(7.5kw) |
Inverter power | 10hp(7.5kw) |
HZ | 50/60HZ |
AMP | 18A |
Type | Gear driven type |
Main plate RPM/Min | 0-450 |
Grinding plate RPM/Min | 300-150 |
Weight | 300kg |
Grinding disk size | 220mm*3 |
Water tank | 30L |
Noise | 65DB |
Packing size | 115*60*110cm |
Extra weight | 20kg*2 |
Specification:
Model | EG550 self propelled |
Working Area | 550mm |
Voltage | 220-240/380-460V three phases |
Motor Power | 10hp(7.5kw) |
Inverter power | 10hp(7.5kw) |
HZ | 50/60HZ |
AMP | 18A |
Type | Gear driven type |
Main plate RPM/Min | 0-450 |
Grinding plate RPM/Min | 300-150 |
Weight | 300kg |
Grinding disk size | 220mm*3 |
Water tank | 30L |
Noise | 65DB |
Packing size | 115*60*110cm |
Extra weight | 20kg*2 |
Polywood case
