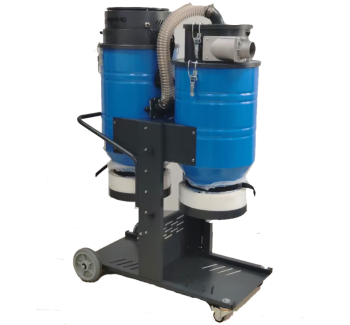

EDV36 110V/220V single phase dust collector
The EDV36 is a concrete dust extractor integrated with a cyclone separator.
With 3 large Ametek motors which has plenty power to be connected to
any mid or larger size grinders ,scarifiers, shot blasters to extract freshly cut, friable concrete
dust.Withcycloneseparator,filteringmorethan99%dust,makefewerdusttoenterinvacuumcleaner,
prolongthevacuumsworkingtime,protectthefiltersinvacuumandextendthelifetime.
dust.Withcycloneseparator,filteringmorethan98%dust,makefewerdusttoenterinvacuumcleaner,
prolongthevacuumsworkingtime,protectthefiltersinvacuumandextendthelifetime.
Specification:
Model | Unit | EDV36M | EDV36M-110V | EDV36A | EDV36A-110V |
Voltage | 240V/50HZ | 110V/60HZ | 240V/50HZ | 110V/60HZ | |
Power(kw) | KW | 3.6 | 2.4 | 3.6 | 2.4 |
Current | Amp | 12 | 16 | 12 | 16 |
Vacuum | mBar | 230 | 210 | 230 | 210 |
Airflow (max) | cfm | 354 | 285 | 354 | 285 |
m³/h | 585 | 530 | 585 | 530 | |
Filter area | m2 | 3.0 | |||
Filter capacity | 0.3μm>99.9% | ||||
Filter cleaning | Manual filter cleaning | Automatic filter cleaning | |||

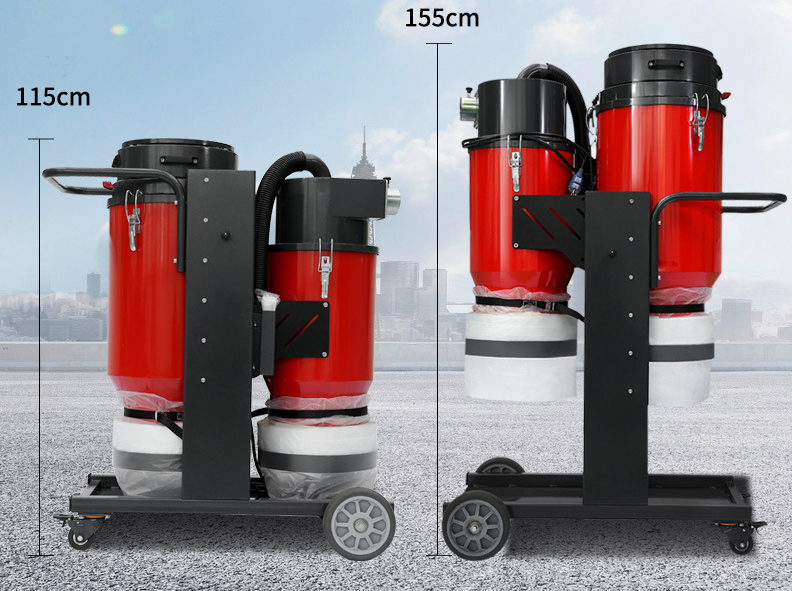

Dimension | mm | 1000X620X1200/1540 | |||
Weight | kg | 83 | 87 | ||
Specification:
Model | Unit | EDV36M | EDV36M-110V | EDV36A | EDV36A-110V |
Voltage | 240V/50HZ | 110V/60HZ | 240V/50HZ | 110V/60HZ | |
Power(kw) | KW | 3.6 | 2.4 | 3.6 | 2.4 |
Current | Amp | 12 | 16 | 12 | 16 |
Vacuum | mBar | 230 | 210 | 230 | 210 |
Airflow (max) | cfm | 354 | 285 | 354 | 285 |
m³/h | 585 | 530 | 585 | 530 | |
Filter area | m2 | 3.0 | |||
Filter capacity | 0.3μm>99.9% | ||||
Filter cleaning | Manual filter cleaning | Automatic filter cleaning | |||
Dimension | mm | 1000X620X1200/1540 | |||
Weight | kg | 83 | 87 | ||
